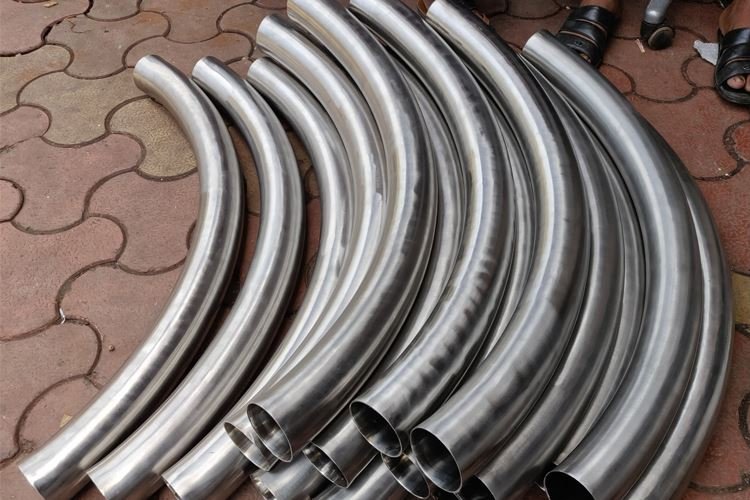

Netco Pipe Fittings is a reputable Long Radius Bend Manufacturer in India While Buttweld Long Radius Bends play an important role in different industries the product is a critical element in the manufacture of piping systems providing a perfect connection for pipelines. These bends are designed to have minimal pressure drop hence creating smooth bends to be used in critical fluid handling activities such as in oil and gas, petrochemicals, and power generation. For difficult operations, all Butt Weld Long Radius Pipe Bends supplied by us are of high quality and they are sourced from a reputed manufacturer in India.
This Stainless Steel Long Radius Bends has been trusted throughout the world for great corrosion characteristics as well as its great mechanical strength common to tough operating contexts. We are a Supplier of ANSI B16.9 Buttweld Long Radius Bends in industries that require accurate and reliable products. If you require products like 90 Degree Long Radius Bends or require special sizing, you will find that our products conform with worldwide standards, thus, providing reliability for several projects.
Long Radius Bend Grade and Specification
| Specification | Details |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size | 2" NB to 18" NB |
| Type | Seamless / ERW / Welded / Fabricated |
| Bend Radii | 75 / 100 / 150 / 250 / 300 / 500 / 800 / 1,000 / 1,200 / 1,500 mm |
| Bending Radius (R) | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Bending Angle (θ) | 15°, 30°, 45°, 60°, 90°, 135°, 180° |
Nickel Alloy U Bend Pipes, Duplex Steel U Bend Tubing Exporter, SS U Bend Pipes Leading Manufacturers, Long Radius Bend Manufacturer in India
Netco Pipe Fittings is a one of the most highly acclaimed Long Radius Bend Manufacturer and Supplier in India, We can cater to all your size and material-related needs. We can export our products all over the globe due to strict qualities and timely deliveries. Choose us for reliable Long Radius Bends provided by the leading industries world for smooth functioning and great worth. We are also a leading in Piggable Bend Manufacturer and Supplier in Mumbai
Dimensions of Long Radius Bend
| Nominal PN (MPa) |
DN | Thread D |
Pipe Specification DH×s |
L1 | L2 | L3 (Not less than) |
L (Not less than) |
R |
| 32.0 | 175 | M240×6 | 245×36 | 120 | 130 | 360 | 1095 | 735 |
| 200 | M265×6 | 273×40 | 130 | 140 | 390 | 1209 | 819 | |
| 225 | M320×6 | 325×50 | 175 | 185 | 525 | 1500 | 975 | |
| 250 | M350×6 | 355.6×55 | 195 | 205 | 580 | 1650 | 1070 | |
| 22.0 | 175 | M215×6 | 219×24 | 100 | 110 | 300 | 957 | 657 |
| 200 | M240×6 | 245×26 | 110 | 120 | 330 | 1065 | 735 | |
| 225 | M265×6 | 273×29 | 115 | 125 | 345 | 1164 | 819 | |
| 250 | M295×6 | 299×32 | 120 | 130 | 360 | 1257 | 897 |
Type Of Long Radius Bend Available At Netco Pipe Fittings
ASME B16.9 Long Radius Bend
Stainless Steel Long Radius Bend
Duplex Steel Long Radius Bend
Buttweld Long Radius Bend Sch 80
ASME B16.9 Long Radius Bends SCH 10
ANSI B16.9 3D Bw Long Radius Bend
Buttweld 10 Inch Bw Long Radius Bend
A403 Gr WP304 Pipe Long Radius Bend
Chemical Composition Of Long Radius Bend
| Property | Value |
| Tensile Strength | 515 - 750 MPa |
| Yield Strength | 205 - 450 MPa |
| Elongation | 20% min |
| Hardness | HRB 95 max |
Mechanical Properties Of Long Radius Bend
| Mechanical Properties Of Long Radius Bend | |
| Property | Value |
| Tensile Strength | 485 MPa (Min) |
| Yield Strength | 205 MPa (Min) |
| Elongation | 40% (Min) |
| Hardness | 90 HRB (Max) |
| Impact Strength | 27 J (Min) |
| Modulus of Elasticity | 200 GPa |
| Poisson's Ratio | 0.30 |
| Density | 7.85 g/cm³ |
Application Of Long Radius Bend
